Silver-plated contacts
Bayonet-type quick connection method

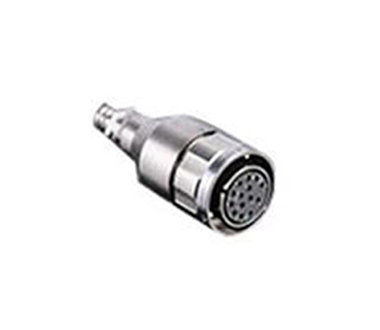

Complies with GJB600 (MIL-DTL-5015) standards

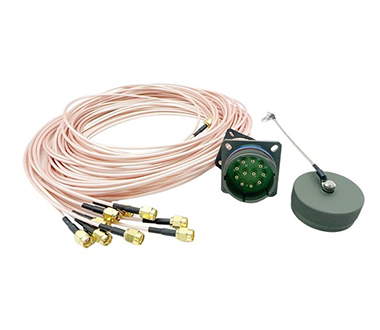

Nominal impedance: 50Ω
Operating frequency: DC～18GHz
Voltage Standing Wave Ratio (VSWR): When 0.5 GHz≤F≤18GHz, VSWR < 1.5

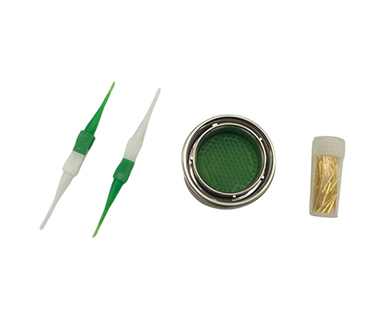

Complies with GJB599B (MIL-DTL-38999M) Series III standards
Three-start thread quick connection with anti-loosening mechanism

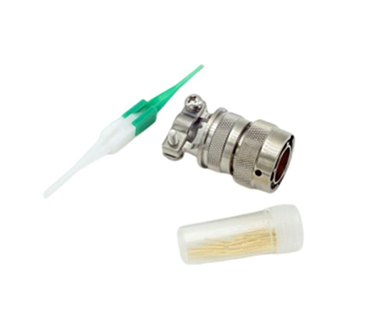

Complies with GJB599B (MIL-DTL-38999M) Series Ⅱ standards
Bayonet-type quick connection

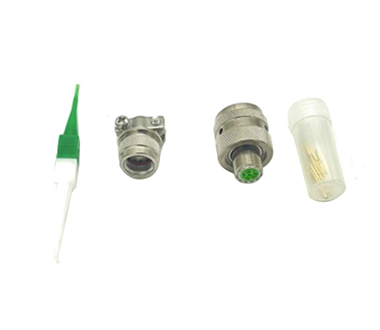

Complies with GJB599B (MIL-DTL-38999M) Series I standards
Bayonet quick-connect design, featuring small size, light weight, and high contact density

Bayonet-type quick connection
Contact termination is mostly welding

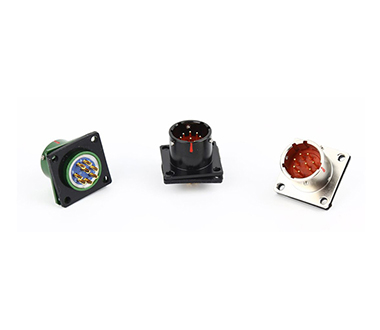

Complies with GJB598 (MIL-C-26482) Series I standards

Bayonet-type quick connection
Removable gold-plated crimp contacts

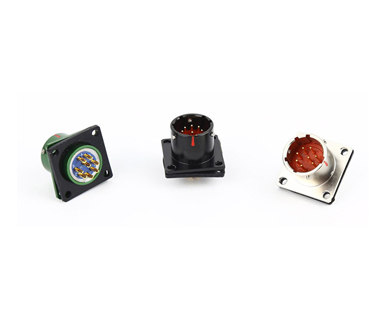

Complies with GJB598 (MIL-C-26482) Series Ⅱ standards

Bayonet-type quick connection
Uses double-curved wire spring contact holes
Complies with national military standard GJB2889

Protective Cap Plating Layer:
FJBP 1: Chemically nickel-plated
FJB: Unplated (black, only applicable to composite materials)

Bayonet-type quick connection
Double-sided wire spring socket
Nut flange socket, easy to install

Operating Temperature: -55°C ~ +200°C
Relative Humidity: Up to 95% at 40°C
Operating Altitude: 30000m
